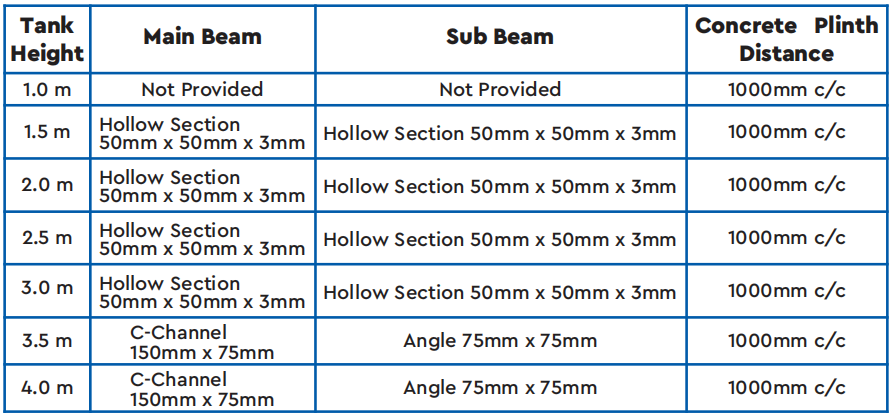

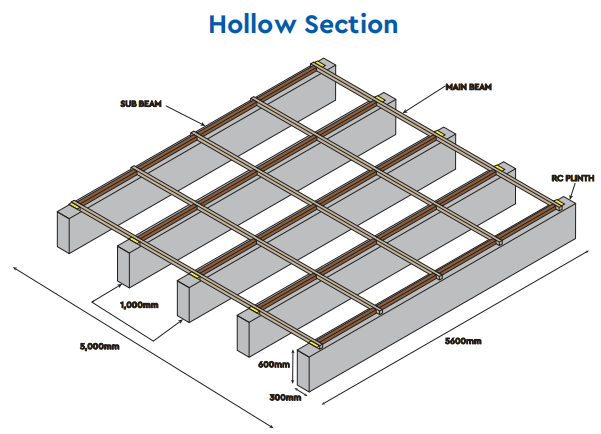

Skid Base Specifications GRP sectional water tank

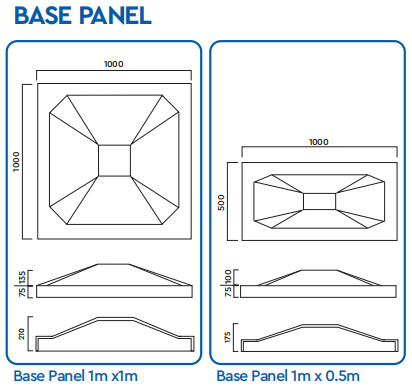

GRP – SMC panel tank new bottom panels improve seals.
Compare with other tank types the bottom tend to open on pressure.

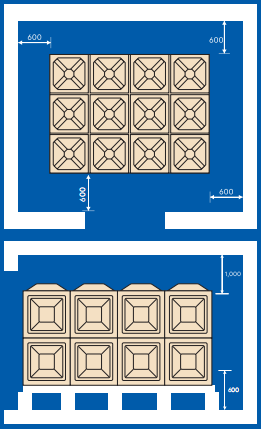

Installation Space
About 600mm space in all directions is required as shown at the bottom image for maintenance and installation of tanks.

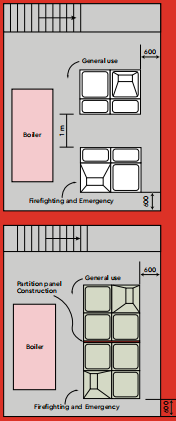

Partition System
When you want to install multiple tanks with different purposes in the confined space of your underground boiler room, you need to keep the installation guideline in mind beforehand. The space of 1 meter in the middle should be secured for maintenance, so you should install two water tanks with 6-ton capacity each. If you install partition type water tanks as shown in the picture, you can use 16 tons of water with a single water tank, 8 tons for drinking and 8 tons for other purposes. This will reduce your installation cost & bring easy maintenance.
