Pressed Stainless Steel Panel Tank
Stainless steel tanks come in various shapes and sizes and are required not only for commercial purposes but also in a high demand for industrial usage. In Industries it is used for storing RO water, Soft water, Hot water and Process water whereas in commercial cases it is mostly used for storing supply water.
Large Stainless steel panel tanks serve various types of industrial applications.
Numerous Benefits
- Panel tanks are hygienic as they are made of food-grade stainless steel grades SS304 and SS316L which helps to preserve water in its natural form
- Free from risks of chemical reaction
- The weight of stainless steel panel tanks are approximately 30 times less than the concrete tanks
- Installation is much faster, approximately about 1/3rd the time of concrete tanks.
- These tanks also prove to be less expensive as the life of these tanks is much higher
- The heat absorption potential of these tanks is very good
- Stainless steel tanks are more durable than concrete tanks
- The maintenance of stainless steel tanks is much cheaper
- The probability of leakage is very low in stainless steel panel tanks
- Stainless steel has the gifted quality of being corrosion free thereby can be used in storing industrial water also used in process and machine cooling. Large stainless steel tanks come with flexibility to customize it according to the customer’s requirement minimizing chances of reengineering work.
A Lifetime Investment
Water storage stainless steel tanks are usually a lifetime investment and there are minimal chances of biomass formation because of the properties of Stainless steel. These large stainless steel tanks and water storage stainless steel tanks provide a lifetime value to buyers.
General Specification
■ Standard – Pressed stainless steel sectional water tank constructed with hydraulically pressed flanged panels, Grade 304 & 316.
■ Materials – The tank panel, tie rods, stays and cleats are made from Stainless Steel Grade 304/316.
■ Flanges of Plates – Tank panels pressed with a 90 degree panel flange to the face of the plate on four sides.
■ Bolts, Nuts and Washers – Stainless Steel Grade 304/316 bolts, nuts and washer.
■ Jointing Materials – Non toxic PVC foam sealent tape for all jointing between tank panel flange.
■ Tank Cover – Panel type tank cover supported by trusses and poles 600 × 600 square manhole and supplied as standard for each compartment.
■ Water Level Indicator – Transparent acrylic tube with aluminium casing and height level marking/Mechanical Ball Float Type.
■ Nozzles for Connection – Short pipe with flange or socket for all pipe connections.
■ Ladder – Internal ladder shall be made of Stainless Steel 304/316 and aluminium for external ladder.
■ Skid Base – HDG C-Channels.

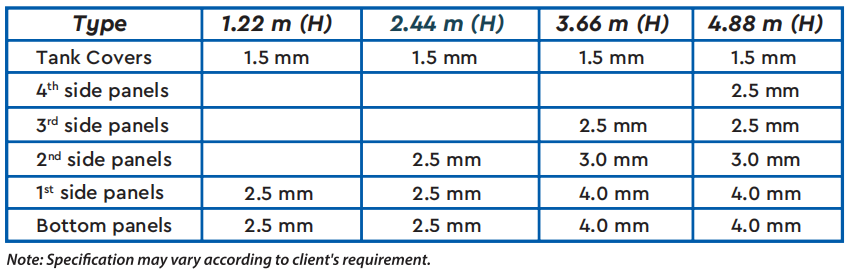

STANDARD THICKNESS FOR
1.22 m X 1.22 m TANK PANEL

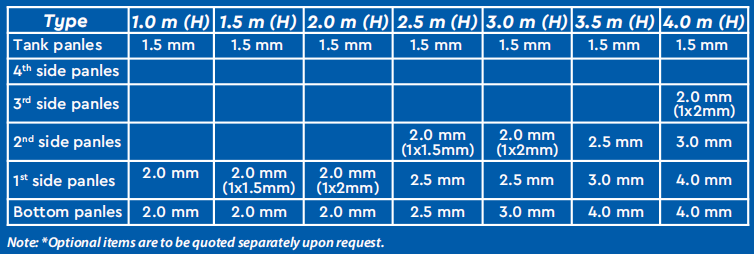

STANDARD THICKNESS FOR
1.0 m X 1.0 m TANK PANEL
