GRP - SMC Panel Tie Rod type tank

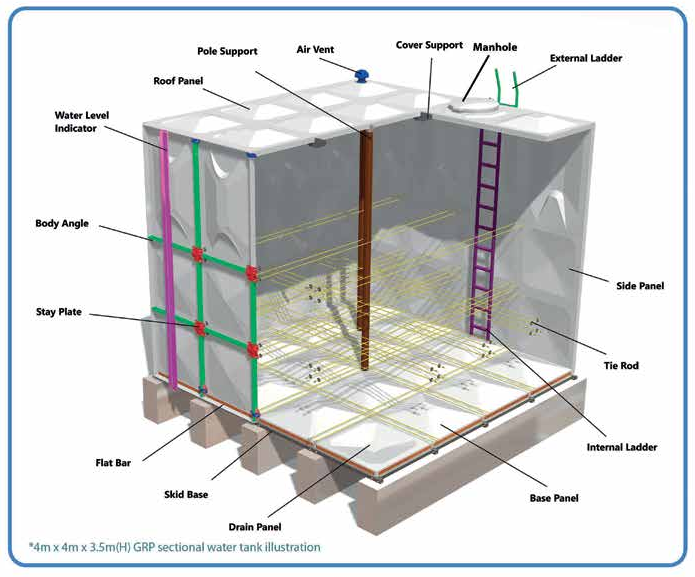

Construction of GRP SMC Panel Tie Rod type tank
GRP SMC sectional panel water tank is constructed with bottom, side and top panels, complete with external and internal structural reinforcement and necessary tank accessories to facilitate water storage.
Main | External Structural | Internal Structural | Tank |
Top Panel | Body Angle | Pole | Access Manhole |
Side Panel | Corner Angle | Pole Support | Air Vent |
Bottom Panel | - | Tie Rod | Water Level Indicator |
Drain/Pit | Flat Bar | Roof Support In | Internal Ladder |
