GRP SMC Panel Tank
GRP SMC panel tanks are a new type of tank made of high quality SMC panels.
These panels are made from (SMC) Sheet Moulding Compound which comprises Glass Fibre, Polyester Resins, Catalysts and Fillers. The compound is fed into heavy hydraulic presses and is pressed with a constant temperature of 150°C.
GRP SMC Panel Type Water Storage Tanks are versatile due to their modularity, low maintenance, and excellent thermal and hygienic properties. GRP SMC Panel Type Water Tanks storage system has been designed and developed for the singular purpose of meeting these demands efficiently, with flexibility, with uncompromising levels of quality and reliability. Specified to meet the most rigorous conditions, it has become the first choice around the world for applications ranging from individual homes to major building and industrial complexes.
GRP SMC Panel Type Water Tanks system is supremely flexible. Small units, from 1m3 (260USG), serve as an integral element at the point of use in a piped delivery system. Larger units, even up to 10,000m3 (2,500,000USG), provide free-standing long term storage capacity.
The growth of algae and other microorganisms is closely related to light. To prevent this requires light transmission of less than 0.1% in direct sunlight. All standard GRP SMC Panel Type Water Tanks molded panels have a light transmission of less than 0.005% to prevent algae growth even if the tank is installed in full sunlight. Growth of algae, if allowed to occur, will adversely affect water taste, and can lead to disease such as gastro-enteritis
Reasons of why GRP SMC panel is one of the best tanks in the world
■ Very long life
■ Low weight
■ Resistant to corrosion
■ No electrical conductivity
■ Low thermal conductivity
■ Has dimensional stabilizers
■ Resistant to UV rays
■ Hygienic according to all other tanks
■ Can be processed in a simple way
■ Panels can be produced as insulated
■ No recycling
■ Paint or maintenance-free
■ Can be manufactured in any colour
■ Not magnetic
■ Light transmittance can be provided
■ Chemical & combustion resistance can be increased
■ High carrying capacity
■ Suitable for food regulations
■ Algae in the tank does not occur

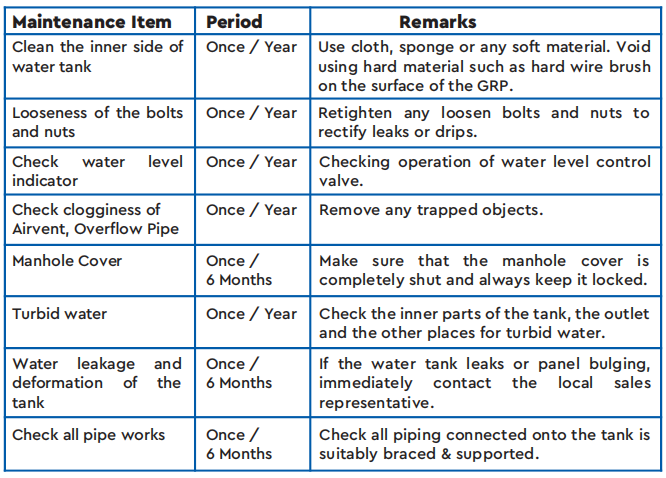

Maintenance, Inspection & Cleaning Recommendations
- GRP SMC panel tanks are designed and manufactured for long-term service.
Periodic maintenance and inspection shall be conducted to ensure its safe usage. - We recommend performing the following inspection and maintenance work.

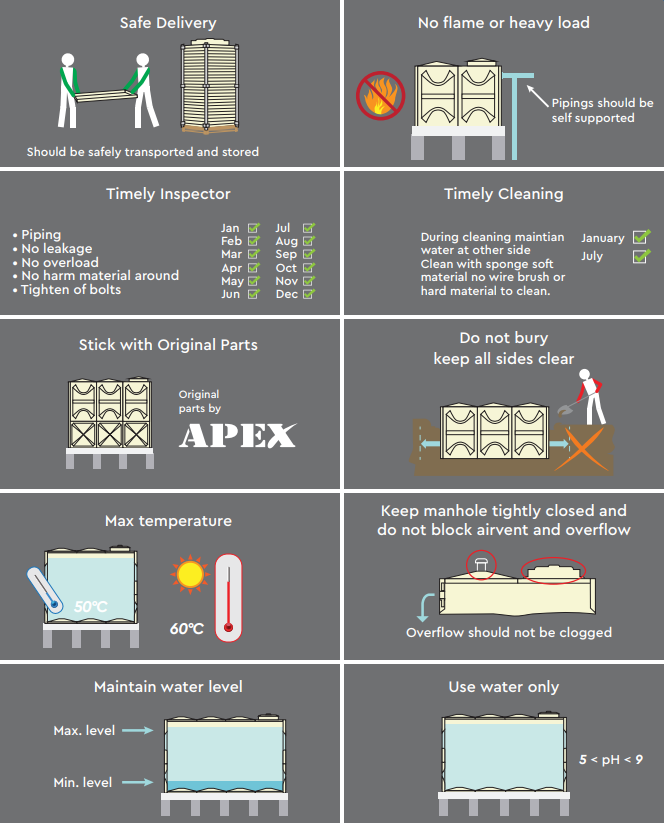

Care & Maintenance of the Tank
Recommendation & Precaution
TRANSPORTATION
■ Do not place heavy loads of force on the panels during transportation
■ Any parts that come in contact with lifting rope or other cargo must be cushioned
■ Be careful not to put heavy weight on the pipes that are connected to the fitting
PIPE INSTALLATION
■ Pipe installation must be started from the water tank side, and be careful not to
put unbalanced weight on the fittings
■ Take precautions to avoid welding works too near to the tank
MAINTENANCE
■ If tank is not used for a very long period of time, be sure to discharge the stored
water before re-use
■ Tank holds a reservoir of water for human consumption, regular inspection is
highly recommended

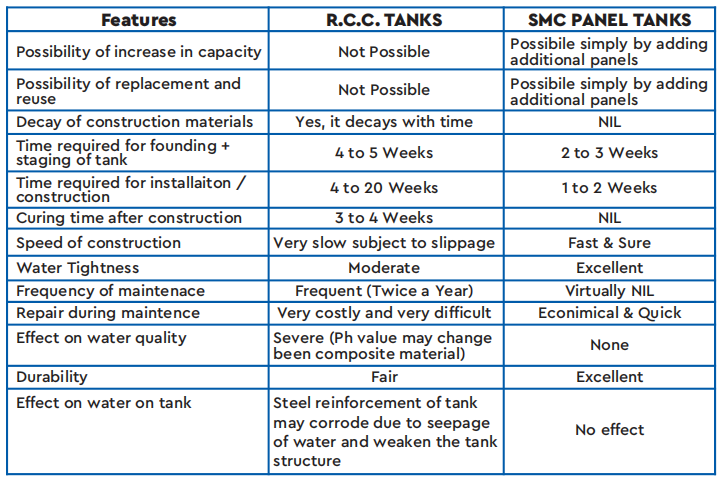

Comparison with RCC/Steel Tank
General Specifications
Standard: Singapore Standard SS245: 1995 Cross reference
to British Standard BS 7491 Part 3:1994 and BS EN 13280:2001
Materials: Resin-Isophthalic unsaturated polyester resin conforming
to BS 3532 specification Fiber Glass-Low alkali fibre glass conforming to JIS
R3411 to R3417 or BS 3396, BS 3496 and BS 3749 specifications
Testing Method: BS 2782
Manufacturing Process: SMC hot pressed compression moulding
Tank Structural Support:
External: Standard Type: Hot Dipped Galvanised Steel – Optional Type:
External Braced type (Metal-Free tank internal for non-partitioned tank only)
Internal: Standard Type: SS 304 Tie-Rod or Cleat/Angle Stay SS316 – Optional
Type: Tie-Rod or Cleat / Angle Stay
Roof Support: PVC Vertical Poles and GRP roof panel stiffener
Sealant: Nontoxic PVC foam
Bolt, Nuts, Washers: External: Standard Type: Hot Dipped Galvanised Steel
Optional Type: SS 304/A2 or SS 316/A4
Internal: Standard Type: SS 304/A2 (In-contact with water) – Optional Type:
SS 316/A4 (In-contact with water)
Roof: Hot Dipped Galvanised Steel or unless otherwise specified
Ladder:
External – Standard: Hot Dipped Galvanised Steel
Internal – Standard Type: PVC Optional Type: GRP or 316
Water Level Indicator:
Standard Type: Reversed Reading Mechanical Ball Float Type with Mouse
Optional Type: Direct Reading Clear Tube Type
Nozzle Panel: Flat panels will be provided for any type of piping materials.
Why You Should Select PIPECO GRP Sectional Water Tank?
■ Exceptionally clean water storage, with WRAS approval.
■ Smooth surface finish on both sides of panel to prevent algae and bacterial growth on panels.
■ Exceptional corrosion resistance with the corrosion proof nature of GRP panel.
■ Each panel and components are manufactured with stringent quality control.
■ Excellent strength and rigidity, designed with a safety factor of 6.
■ Strong resistance to high UV and harsh weathering conditions.
■ Ease of handling, transportation, installation and maintenance.
■ Panel design is modular and could accommodate various size and shape requirements to fit space constrained site conditions.
■ Excellent thermal insulation performance with the option of an insulated panel.
