Drain Channels
For indoor and outdoor installation
Whether a shower, swimming pool or wellness area: wastewater is a natural occurrence. That is why the appropriate drainage needs to be installed in these areas. We offer modern drainage solutions for bathrooms in private, commercial and public buildings. Our range of bathroom and shower channels is suitable for new buildings as well as refurbishment and refurbishment projects – from practical, maintenance-friendly solutions and barrier-free room concepts to a unique design experience.
Bathroom drains and shower channels

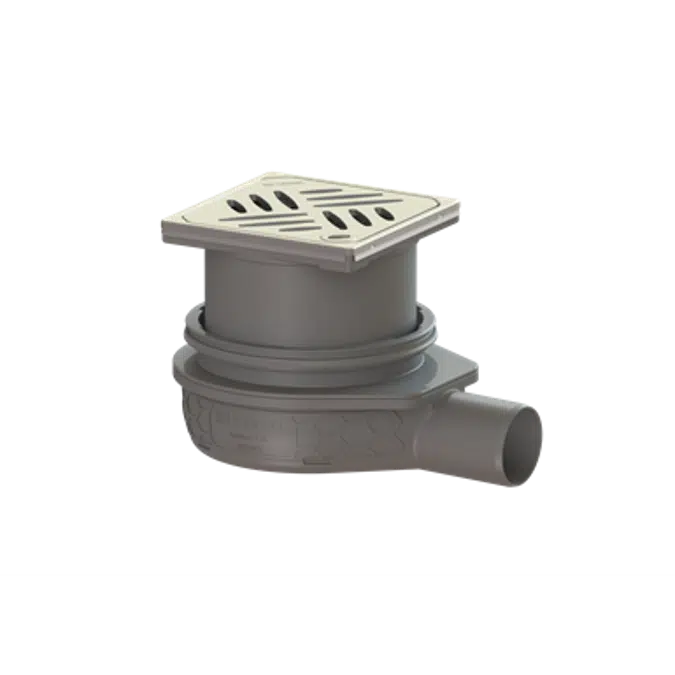

Floor drain The Ultraflat 54
The Ultraflat is a flattest bathroom drain and is thus predestined for renovation work in existing buildings. The Ultraflat can be combained with different design covers, despite its compact size, provides a high discharging rate if 0.6 to 1.0 l/s

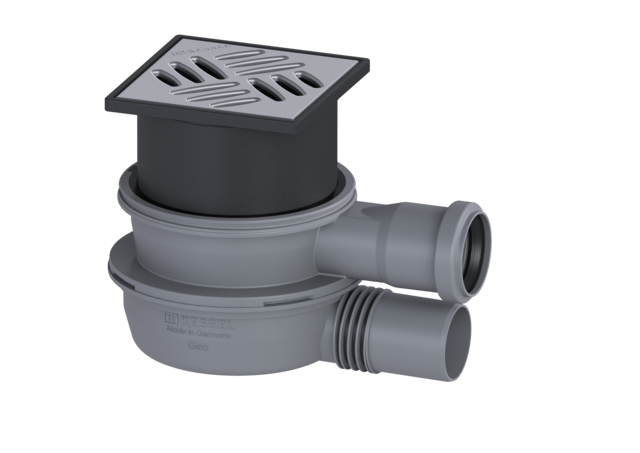

Bathroom drain Giro
Giro bathroom drain inlet can be rotated 360 degrees around the housing, to align the outlet as required. And thanks to the flexible outlet connecting to the pipe system is even easier. Drainage capacity 1.3 l/s flow rate

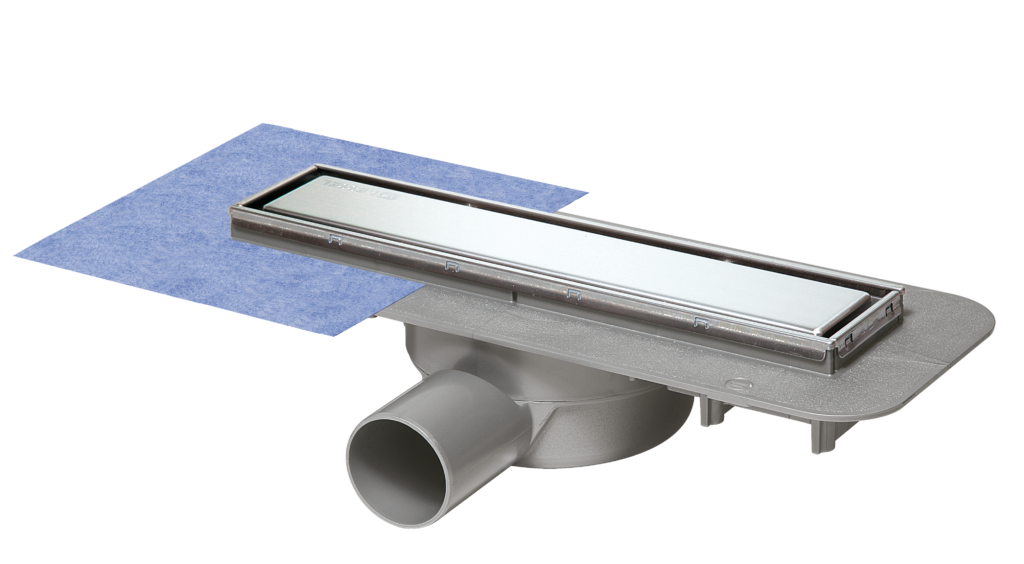

Shower channel Linearis compact
With its low minimum installation depth of only 80 mm (flange installation depth: 65 mm), outlet Ø 90 the Linearis Compact is particularly suitable for renovation. Nonetheless, it can be used in new buildings. Non -mounted waterproofing membrane according to EN1253-1 and DIN 18534-1-W2-I or factory -mounted waterproofing membrane according to EN 1253-1 and DIN 18534-1-W3-I. Drainage capacity 0.6 l/sec /0.5 l/sec with 10 mm
Wall drain Scada
Compact wall drain Scada is not only set into the floor, but also into the wall , and therefore creates the requirements for 100% level access, walk-in shower area. Minimum installation depth of only 80 mm to the top of the tile. Drainage capacity 0.5l/sec flow rate.
Project drains
Floor drain Ecoguss
Ecoguss developed in composite material which combines the specific advantages of polymer and metal. Therefore an economic and easy to install alternative to drains made of cast iron. Suitable for public buildings such as hotels, hospitals or swimming pools. Drainage capacity in l/s with 20 mm / 10mm threshold
Floor drain Practicus
Practicus made of the high-quality polymer polypropylene (PP) is an easy to install alternative to drains made of metal. Its rust resistant and smooth prevents deposits and therefore ensure strong self-cleaning effect. Drainage capacity 1.8 l/s with 20 mm / 10 mm threshold

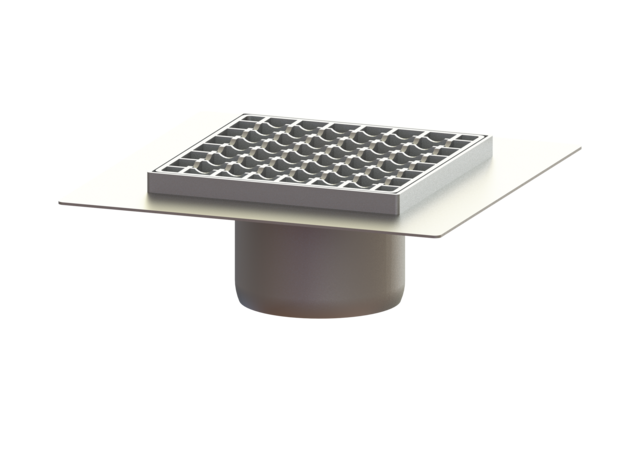

Modular system 125 Ferrofix Express
Ferrofix drains made of stainless steel are particularly durable solutions for drainage in commercial rooms. The stainless steel grade AISI 304, anti-slip R11 acid-treated in pickling bath. Mesh width 23*23 mm, load class L 15.
